Atlantic Airport (added 3/16/08) - Charlestown NAAS (revised 2/1/09) - Newport Naval Air Facility (revised 3/22/08)

____________________________________________________

Newport Naval Air Facility, Gould Island, RI

41.53 North / 71.34 West (Northwest of Newport, RI)

A 1939 aerial view of the Newport NAF (from the RIGIS at the University of Rhode Island, via Chris Kennedy),

with several seaplanes visible on the ramp at the southwest corner of the island.

Chris observed, “You can almost read U. S. Navy on the hangar at the south end.

Note that the only seaplane ramp is west of the hangar. They must have added the other one later.”

In 1909 the Federal Government purchased a portion of Gould Island,

a 56-acre tract located off Conanicut Island in the East Passage of Narragansett Bay.

The government then purchased the remainder of the island in 1918,

and the next year the Newport Naval Torpedo Station added a new storage facility on Gould Island.

In 1919, new construction on Gould Island by the Navy included Air Detail hangars for seaplanes & kite balloons,

a water tower and underground distribution lines, a wooden pier for personnel at the north end of the island,

and a concrete pier for torpedoes at the southeast point of the island.

The former Haughton family residence was converted to a barracks for the Marines who guarded the magazines.

During the next several years additional buildings were erected on the island

to provide torpedo & warhead storage as well as housing for a Marine detachment.

In 1920, a Naval Air Detail was established under Navy Lieutenant Thomas H. Murphy.

On August 20, 1921, two naval torpedo planes – modified by the addition of pontoons –

arrived at Gould Island, and were based at a newly built hangar of steel-frame & wood construction near the south end of the island.

A concrete platform & ramp were constructed, oriented toward the west.

The aircraft were to be employed to test-drop aerial torpedoes.

They were subsequently used to track & locate torpedoes that have been test-fired from a large barge

or, later, from the Firing Pier at the north end of Gould Island.

On November 2, 1921, Lieutenant Murphy, Head of the Air Detail,

made the first successful U.S. air drop of a torpedo in the waters off Gould Island.

In 1931, hangars & ramps were constructed at the southern end of Gould Island.

On September 21, 1938, a hurricane brought an estimated $17,900 of damage to the Navy installation on Gould Island.

As the winds built, 2 seaplanes were made fast outside, and all other planes were placed in the hangar.

The hangar doors were closed.

The tide rose around the hangar, and the area was swept by violent seas that broke in the east door of the hangar.

The hangar’s south windows were covered with water.

Shortly after 6:00 pm the seaplanes secured outside broke loose & drifted northward.

One plane was badly damaged & sank about one mile north of Gould Island.

Several days later, pieces of a seaplane’s main float & a small section of its fuselage

were recovered near Beavertail Lighthouse about 7 miles south of the point that the plane was last observed afloat.

The main doors of the hangar were carried away.

Nine planes were damaged to the extent that they required major overhauls.

In 1939, test drops began from Gould Island aircraft of a turbine-powered torpedo, originally of British design,

that will become the Mark 13 torpedo used by aircraft in World War II.

In 1939, the first production Douglas TBD-1 Devastator was fitted with a pair of floats,

and then sent to Gould Island for drop tests of the Mark 13 torpedo.

The earliest depiction which has been located of the Gould Island seaplane facility

was a 1939 aerial view (from the RIGIS at the University of Rhode Island, via Chris Kennedy).

It depicted several seaplanes on a small ramp at the southwest corner of the island,

with a single ramp leading into the water to the west.

A single hangar had “U. S. Navy” visible on the roof.

The northern end of the island was still undeveloped.

In 1941, the newly constructed Naval Air Station at Quonset became the operational base for 4 squadrons of seaplanes,

and the Gould Island air facility was designated an auxiliary landing area.

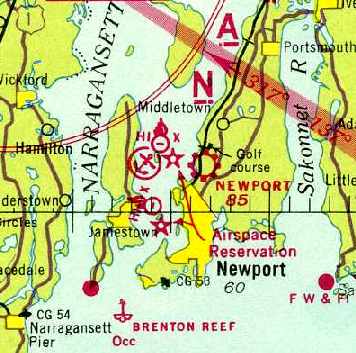

The earliest aeronautical chart depiction which has been located of the Gould Island seaplane facility

was on the May 1941 Boston Sectional Chart (courtesy of Chris Kennedy).

It depicted the seaplane base (with an anchor symbol), but did not otherwise identify it.

From 1941-45, a total of 4,300 test drops of the Mark 13 torpedo were conducted in the waters east of Gould Island.

On April 9, 1942, the Navy anti-aircraft gun crews who had manned four 1.1" quadruple-gun mounts on Gould Island

were relieved by the Army’s Battery A, 207^th Coast Artillery (Anti-aircraft), Eastern Defense Command.

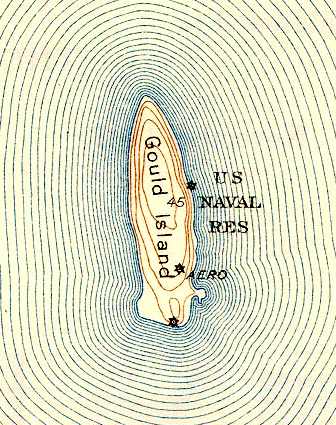

The 1942 USGS topo map depicted the “U.S. Naval Reservation” on Gould Island, and an “Aero” beacon,

but did not depict any of the seaplane facilities.

In 1942, construction began for a new hangar & a larger, south-facing ramp for the air facility at the south end of Gould Island.

The new ramp was 50' wide & 350' long, with a slope of 6 degrees.

It extended 10' below the low-tide level.

The November 1942 Boston Sectional Chart (courtesy of Chris Kennedy)

depicted the seaplane facility as the “Naval Air Depot”.

In April 1943, the Army’s Battery A, 207^th Coast Artillery (Anti-aircraft)

was relieved by the 701^st Coast Artillery Regiment (Anti-aircraft).

In April 1943, construction of the aircraft hangar at the south end of the island was completed.

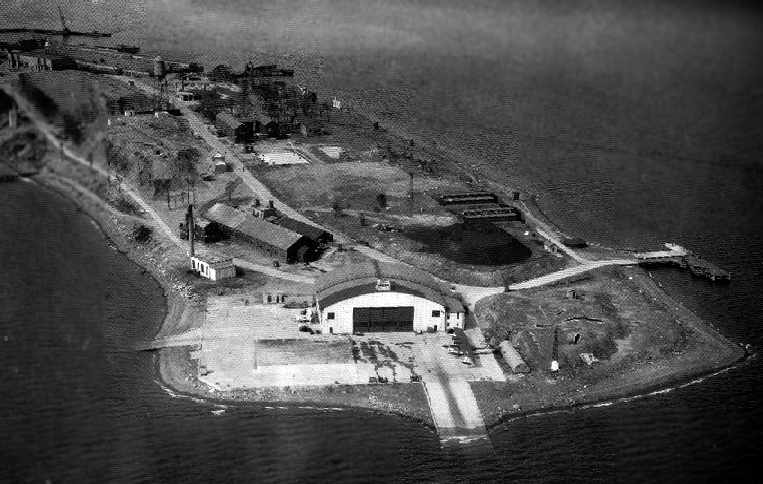

A circa 1940s aerial view looking north at the Newport Naval Air Facility on Gould Island (National Archives).

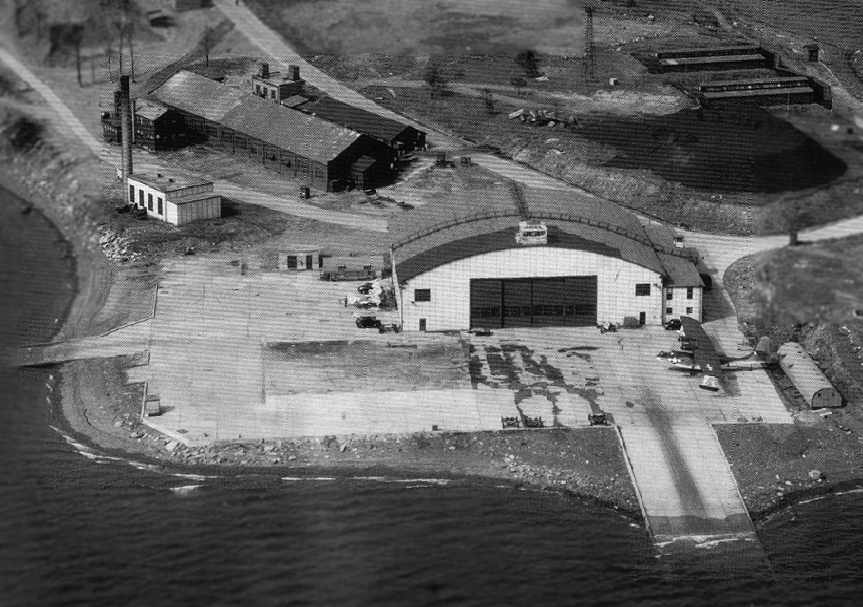

A closeup from the circa 1940s aerial view looking north, showing the Gould Island ramp & hangar,

the airway beacon tower behind the hangar,

and a rare PBN Nomad on the right side of the ramp (National Archives).

John Voss reported, “The Nomad was a variant of the PBY-5 Catalina that was built by the Naval Aircraft Factory in Philadelphia, PA.

Only 156 were built most of which were given to the Russians under Lend Lease.

The USN retained about 20 or so for evaluation purposes (never used operationally).

The PBN differed from the PBY in that it had a revised hull, revised wing tip floats,

a very unique nose turret, a pointed nose, longer fuselage and tall tail.

The tall tail design feature was picked up by the PBY-6A & PB2B-2 Catalinas.

All PBN's were flying boats [non-amphibious]. Photographs of PBN's in USN markings are very rare.

No PBN's are existent in the US [as of 2005] as most were scrapped prior to the end of WWII.

Do any remain in Russia? ...Time will tell.”

In October 1943, construction of the Firing Pier & the adjacent overhaul shop at the northern tip of Gould Island was completed.

The Firing Pier had 4 torpedo tubes for firing torpedoes, 2 for test-firing surface-ship torpedoes,

and 2, on elevators that lowered into the water, for test-firing submarine-launched torpedoes.

By the end of World War II, over 65,000 torpedo test-firings had been made from its launchers.

At the peak of aviation activity in 1944, the Air Detail included 11 officers, 119 men, and 26 planes.

According to the book “U.S. Naval Air Stations of WW2” by Mel Shettle,

“Aircraft based at Gould Island during 1945 consisted of 5 OS2U Kingfishers,

3 N3N floatplanes, and one J4F Widgeon.”

In 1945 the Air Detail was renamed the “Naval Air Facility”.

The December 1945 Boston Sectional Chart (courtesy of Chris Kennedy)

depicted the seaplane base on Gould Island as the “Naval Air Depot”.

In 1951 the Torpedo Test Facility on Gould Island

became part of the Naval Ordnance Station at Coddington Cove,

which had succeeded the former Naval Torpedo Station on Goat Island.

In a 1951 aerial view of the Newport NAF (from the RIGIS at the University of Rhode Island, via Chris Kennedy),

the torpedo test station is visible at the north end of the island.

The seaplane facility at the south end appears to have been closed by this point,

as there are no aircraft visible on the island.

Seaplane operations on Gould Island were definitely discontinued before 1954,

as the seaplane facility was no longer depicted at all on the November 1954 Boston Sectional Chart (courtesy of Chris Kennedy).

The seaplane facility appeared abandoned in a 1963 aerial photo.

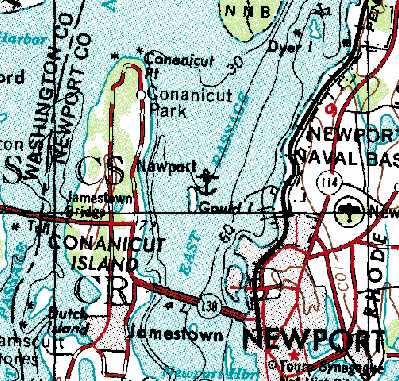

The 1969 USGS topo map still depicted a seaplane base (the anchor symbol) at Gould Island,

but its depiction as such on a USGS topo map doesn't necessarily indicate it was still in operation at that point.

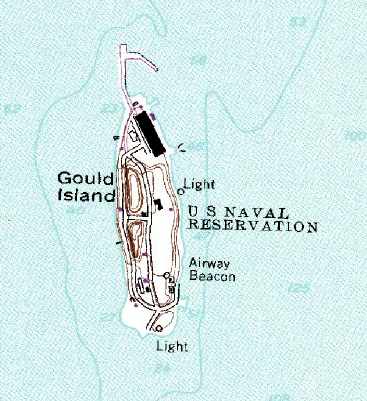

The 1975 USGS topo map still depicted Gould Island as a “U.S. Naval Reservation”,

as well as having an Airway Beacon along the southeast side.

The large firing pier building was depicted on the north side of the island,

but neither the seaplane ramp nor the hangar was still depicted on the south side of the island.

The hangar had evidently been removed at some point between 1951-75.

In 1975 the Navy began transferring the southern 70% (about 39 acres) of Gould Island to the State of Rhode Island.

The State gained ownership of 17 acres in 1975 & 22 acres in 1989.

Within the northern area administered by the Navy,

four buildings were declared “historic” by the Navy & the Rhode Island Historical Preservation & Heritage Commission.

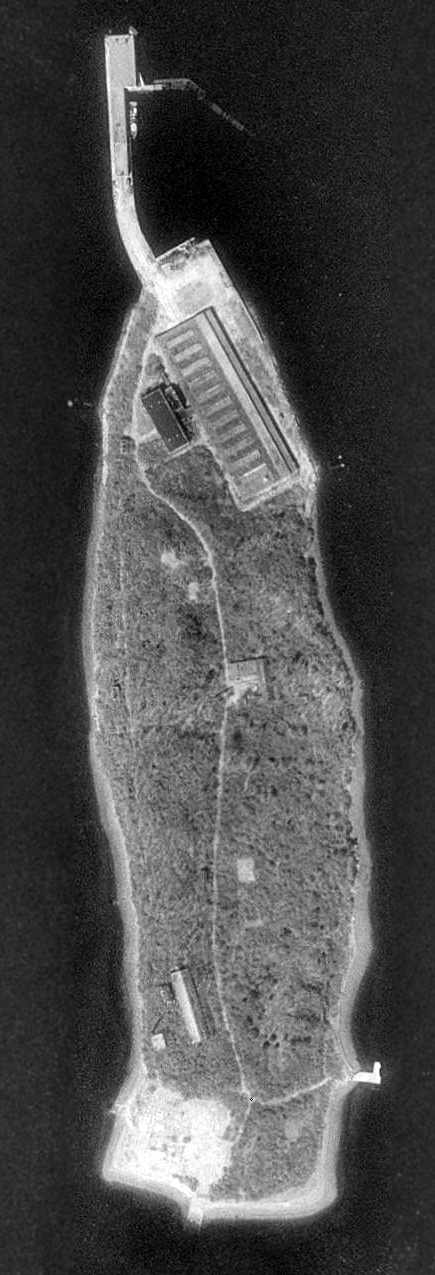

The 1995 USGS aerial photo of Gould Island

depicted 2 large buildings at the Firing Pier on the north side of the island.

On the south side of the island, the concrete seaplane apron was still extant,

but the hangar was gone.

According to 1995 book “U.S. Naval Air Stations of WW2” by Mel Shettle,

“Gould Island is now the property of the State of Rhode Island.

Plans are to create a park on the island, although funds are lacking.”

In June 1999, although the Navy & the Rhode Island Historical Preservation & Heritage Commission

had previously designated 4 of the remaining Navy buildings to be historic,

the Navy decided to demolish these 4 buildings.

It intermittently continued to test-fire torpedoes from the firing pier.

In 2000 & 2001, the 4 Navy structures within the roughly 17 acres that were still Navy property were torn down.

These buildings were the overhaul shop, the power plant, the acetylene building, and the upper 2 floors of the firing pier.

The rest of the firing pier was retained.

In 2003, as part of the agreement to demolish the four historic structures,

the Navy agreed to develop a display that depicts the history of the Gould Island Facility

in order to provide the public with a knowledge of the significance of the facility

and its importance to the war effort during World War II.

That display was on exhibit at the Naval War College Museum as of 2003.

A circa 2005 aerial view looking north at the concrete foundation on the north side of Gould Island,

showing that all of the buildings of the Firing Pier had been removed.

A circa 2005 aerial view looking north at the south end of Gould Island,

showing that the concrete seaplane apron remains, along with both ramps leading down into the water.

The hangar no longer stands, but a large 1940-vintage building still exists just north of the apron,

along with a brick smokestack.

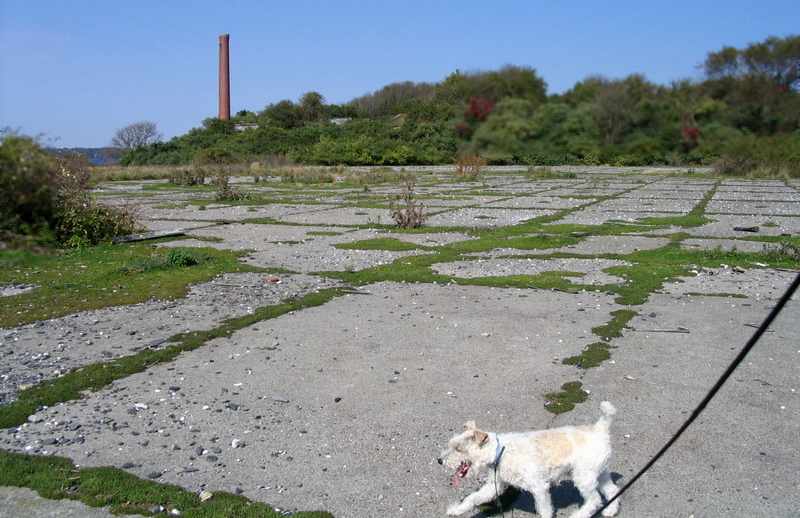

A 2006 photo by George DiGregorio looking north at the remains of the Gould Island seaplane apron.

George DiGregorio reported in 2006, “I recently took a little adventure

out to explore the abandoned seaplane / torpedo base on Gould Island.

Its still pretty much like the 2005 aerial pictures.

The interior of the island is severely overgrown & impassable with 15' high thorny brambles

that choke off the island's interior so I was not able to visit any of the buildings.”

A 2006 photo by George DiGregorio looking southeast along the former Gould Island seaplane ramp.

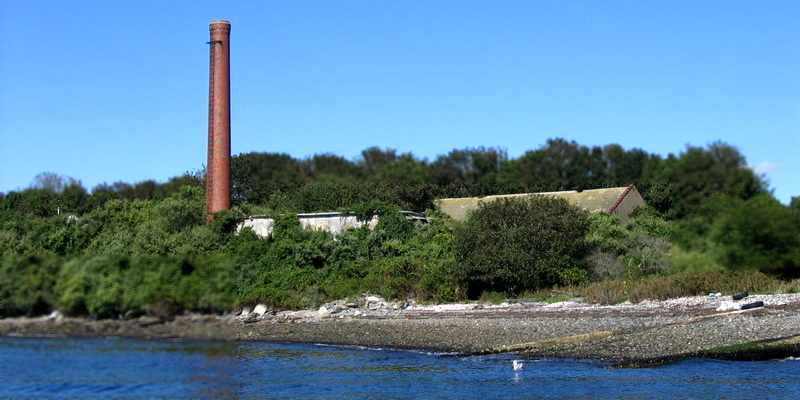

A 2006 photo by George DiGregorio looking east at the smokestack & buildings which remain on the southwest side of Gould Island.

A 2006 photo by George DiGregorio of the remains of a torpedo carriage on Gould Island.

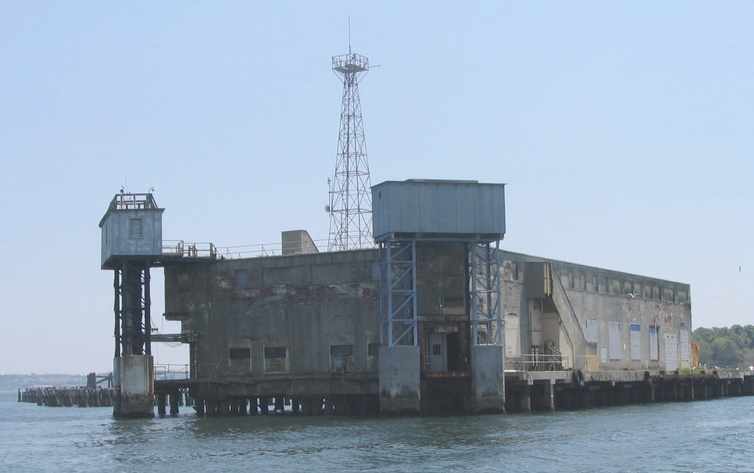

A 2006 photo by George DiGregorio looking southeast at the former torpedo firing pier on the north end of Gould Island.

____________________________________________________

Atlantic Airport, Charlestown RI

41.38 North / 71.61 West (East of Westerly, RI)

Atlantic Airport, as depicted on the Boston Chamber of Commerce's

1931 "Airports & Landing Fields of New England" (courtesy of Chris Kennedy).

The date of construction of this small civilian airport along the Atlantic coast has not been determined.

The earliest reference to the Atlantic Airport which has been located

was in the Boston Chamber of Commerce's 1931 "Airports & Landing Fields of New England" (courtesy of Chris Kennedy).

It described Atlantic as a commercial airport, located 9 miles east of Westerly.

The field was said to consist of a 64-acre rectangular sod & loam field,

measuring 3,340' north/south by 700' east/west.

The field was also said to have a 60' x 40' hangar.

"Atlantic" was depicted as a commercial or municipal airport

on the 1935 Regional Aeronautical Chart (courtesy of Scott O'Donnell).

According to Chris Kennedy, Atlantic Airport was described as being located 3/4 mile east of Charlestown.

The field was said to have 3 runways, with the longest being the 2,640' northeast/southwest strip.

A hangar was located in the northeast corner.

Atlantic Airport was evidently closed (for reasons unknown) at some point between 1935-39,

as a 1939 aerial view showed no obvious use of the airfield,

and showed that the hangar previously in the northwest corner had been removed.

In a circa 2006 aerial photo,

there was no obvious trace remaining of the former Atlantic Airport.

____________________________________________________

Charlestown Naval Auxiliary Air Station, Charlestown RI

41.04 North / 71.51 West (East of Westerly, RI)

"Charlestown (Navy)", as depicted on the 1944 Boston Sectional Chart (courtesy of Chris Kennedy).

In 1942, the Navy constructed Charlestown NAAS, a satellite airfield for Quonset Point NAS.

Charlestown was used to train night fighter squadrons,

and also was the home of the Navy Air Navigation Project,

which developed & tested navigation aids & traffic control systems.

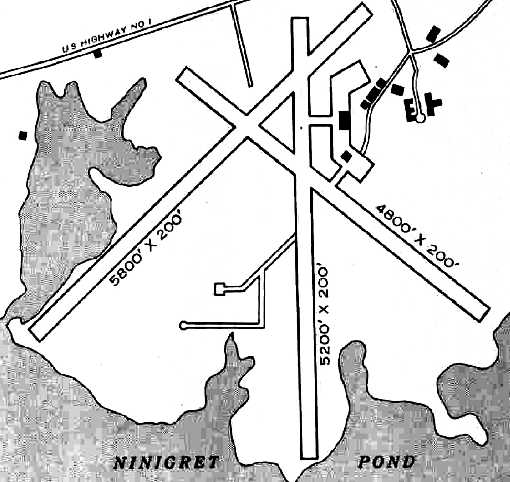

The earliest depiction which has been located of Charlestown NAAS

was on the 1944 Boston Sectional Chart (courtesy of Chris Kennedy).

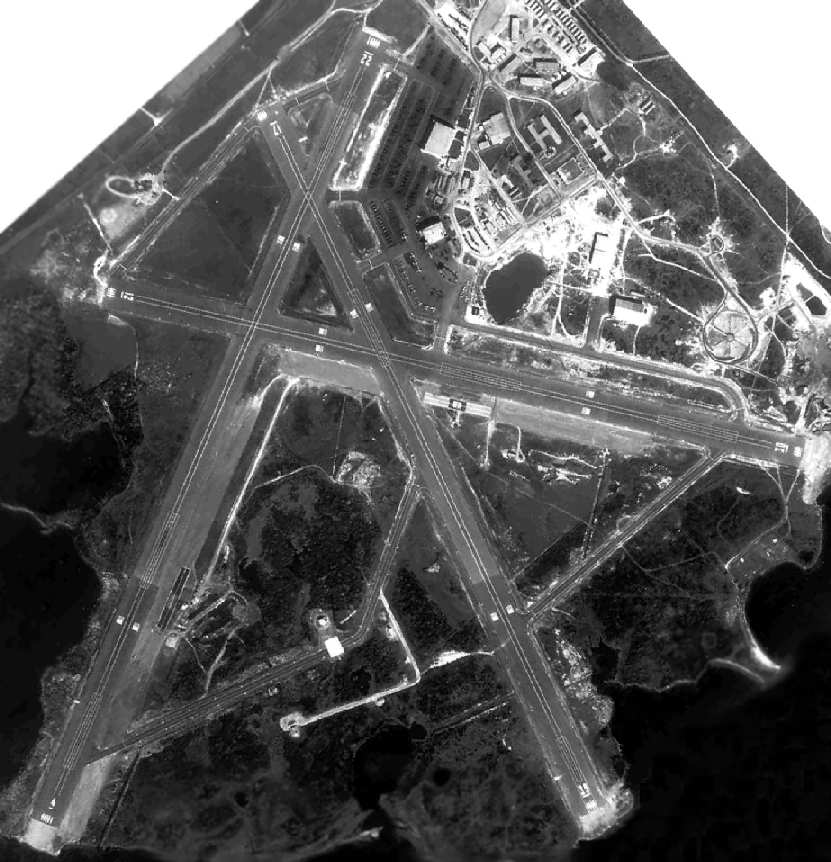

A 1945 Navy aerial view of Charlestown (courtesy of Ron Plante).

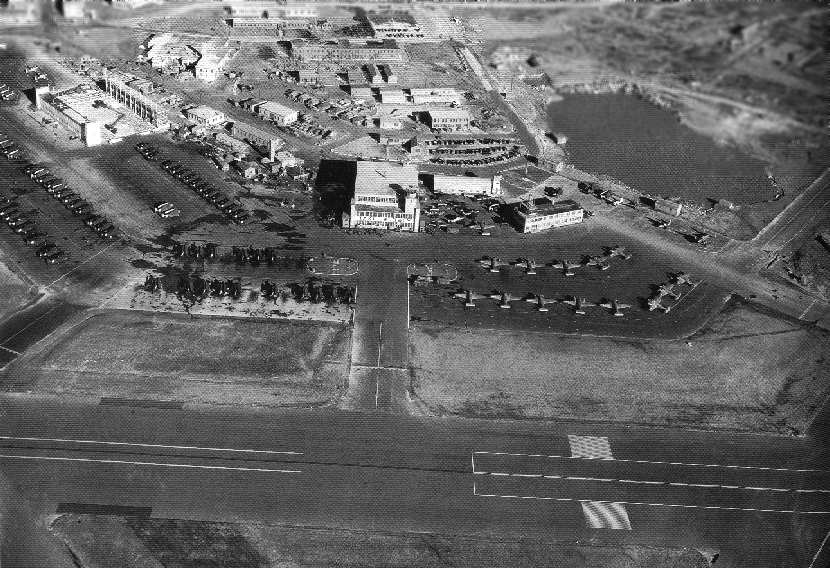

A WW2-era aerial view looking southeast at the ramp & hangars at Charlestown (National Archives photo).

The aircraft parked on the right are twin engine Beechcraft SNBs

that were used to train night-fighter pilots in the use of radar.

A Grumman F6F-5N Hellcat night-fighter, of the type used at Charlestown.

Bob Jeska reports that he "was stationed at Charlestown from the fall of 1944 until the fall of 1945.

First attached to a CASU (Carrier Aircraft Service Unit) and later to NACTU (Night Aircraft Training Unit)."

"NACTU had F6F-3N & F6F-5N [Hellcats] & TBMs [Avengers].

The F6F-3N used AIA radar, and the F6F5N had APS-6 radar.

The AIA radar had a wave guide that ran from the transmitter-receiver in the belly

through the wing fold to the antenna.

Keeping the guide in the necessary precision alignment through the fold was a bear,

and needed constant attention.

The APS-6 had the transmitter-receiver out on the wing and a co-ax cable brought the signal into the plane."

"The TBM didn't always carry radar, but when it did, it was an APS-4.

It was housed in a thing that looked like a finless bomb, fitted on a bomb rack out on the wing."

"I was an Electronic Technician's Mate & tuned and repaired the radios, altimeters, radars, and IFF.

In the fall of 1945, after VJ day, the training unit was transferred to Boca Chica, FL."

According to James Nagy, he witnessed an F8F Bearcat crash at NAAS Charlestown

in 1947 during night carrier landing practice.

A 1951 aerial view of Charlestown (from the RIGIS at the University of Rhode Island, via Chris Kennedy)

showed the field remaining completely intact, including at least 3 hangars.

There were no aircraft visible on the field, however.

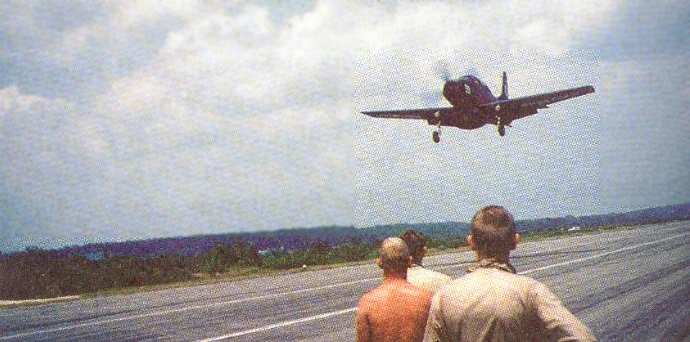

Field Carrier Landing Practice at Charlestown in the mid 1950's

by AD-1 Skyraiders from VAW-12 from nearby NAS Quonset Point.

Photo is from Guppy Pilot, by Roger Smith, courtesy of John Eckberg.

The runways of Charlestown were used for drag racing in 1958-59,

as described in the November 1959 issue of Rodding Magazine (courtesy of Marty Lineen).

A 1962 aerial view of Charlestown (from the RIGIS at the University of Rhode Island)

showed that 2 of the 3 hangars had been removed at some point between 1951-62,

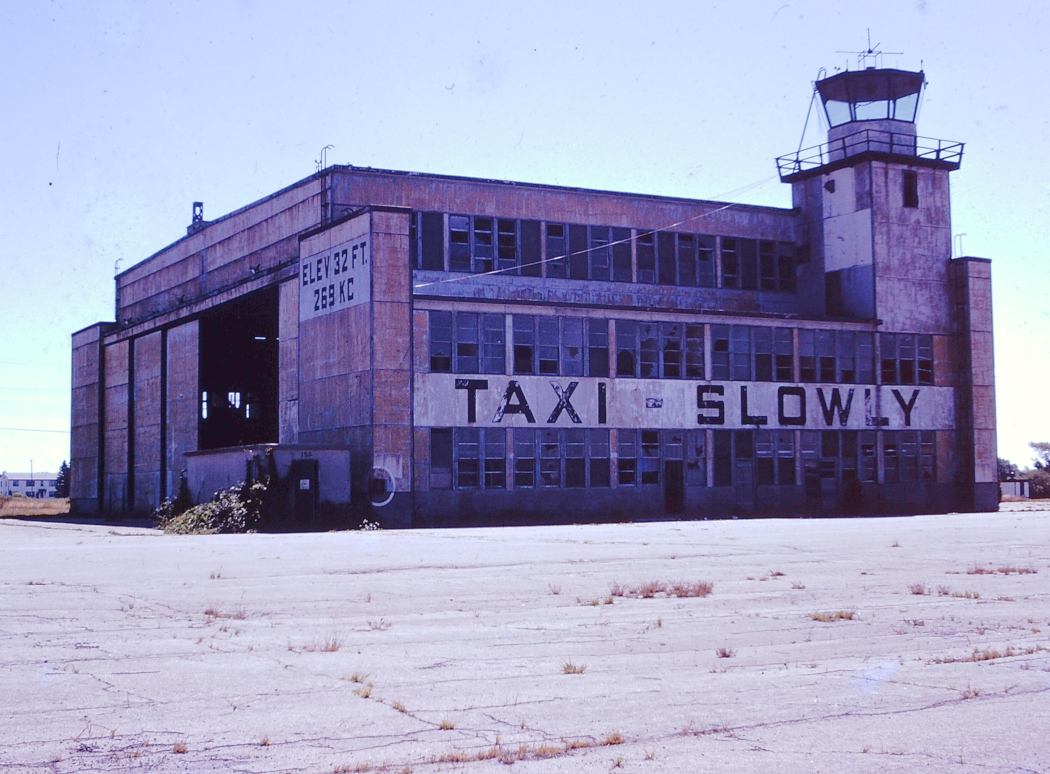

with only the central hangar (with attached control tower) still standing.

"ALF Charlestown (Navy)" was depicted on the 1965 Boston Sectional Chart (courtesy of John Voss).

The Aerodromes table on the reverse side of the chart described the field as having 3 asphalt runways,

with the longest being 5,800'.

Starting in 1965 some suborbital sounding rockets were launched from Charlestown.

The biggest campaign took place on May 30, 1965 in order to watch a solar eclipse.

"ALF Charlestown (Navy)", as depicted on the 1968 Boston Sectional Chart (courtesy of Mike Keefe).

According to Hal Marshall (who served at Charlestown from 1968-71), the base was disestablished in 1974.

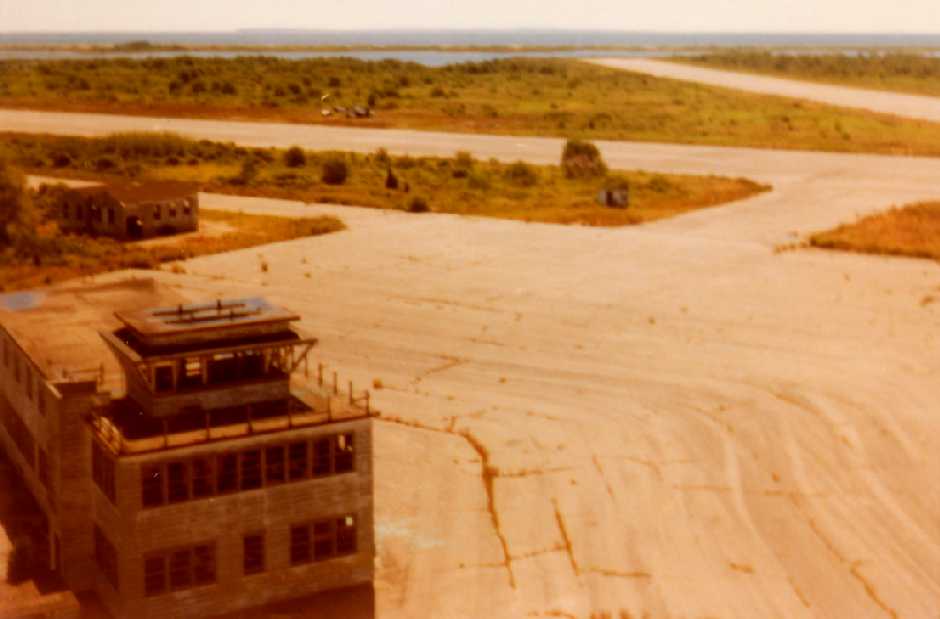

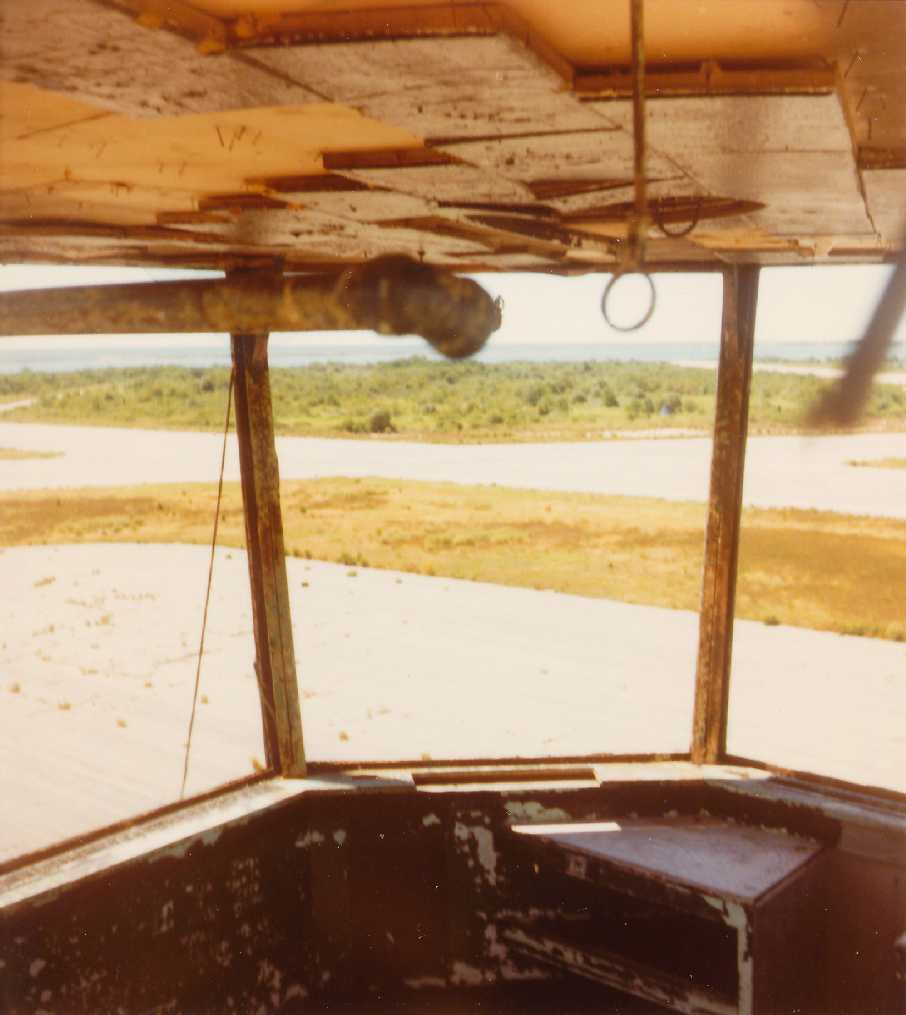

James Brennan recalled, “I visited the former Charlestown Navy Auxiliary Air Field quite a few times starting in the 1970s

and climbed up into at least one of the control tower cabs.

When were able to get away with it, it was great to explore it;

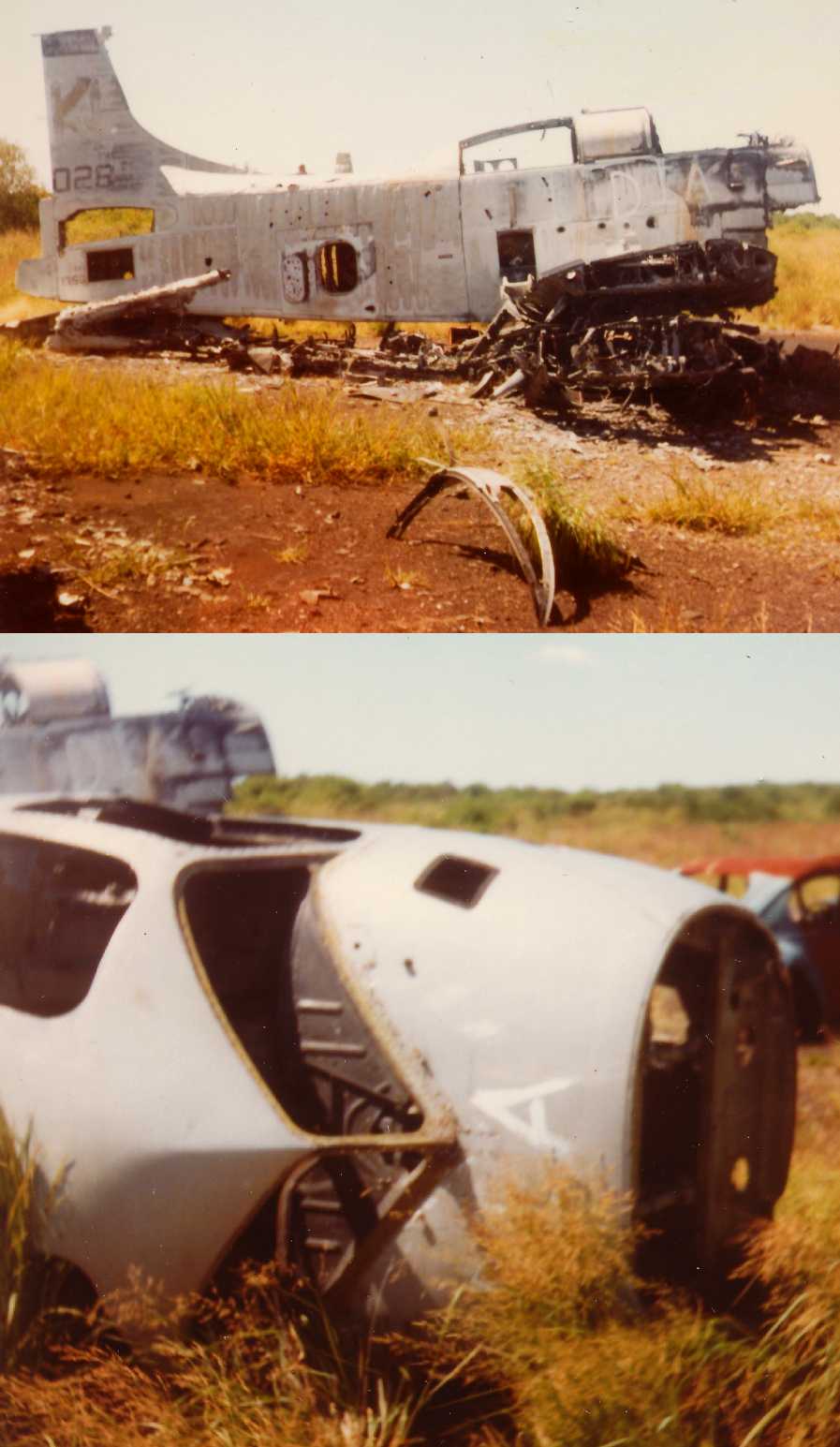

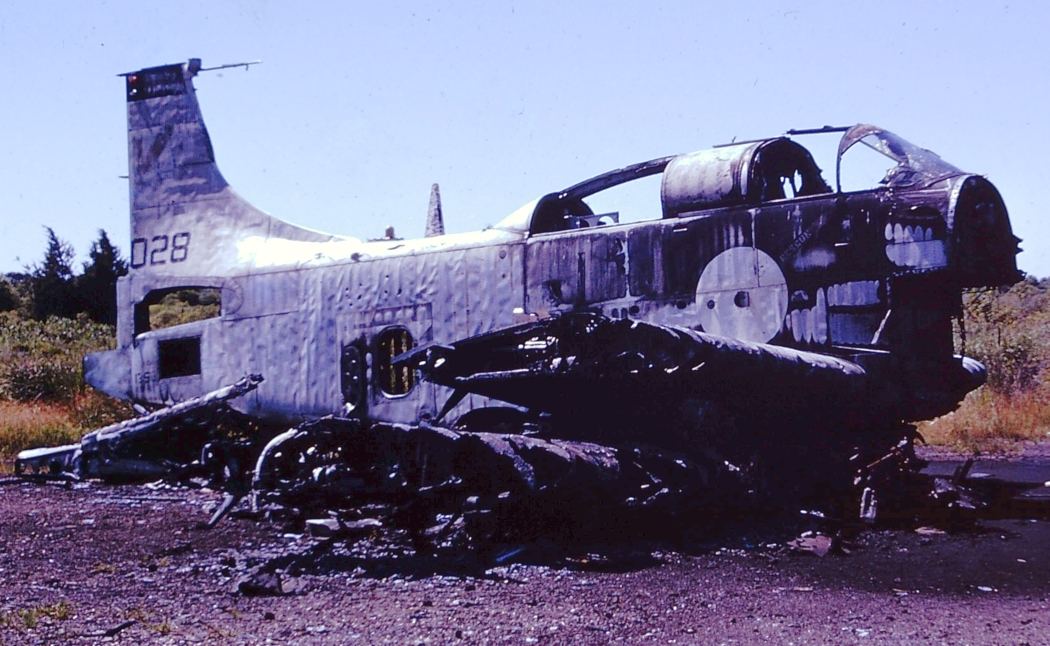

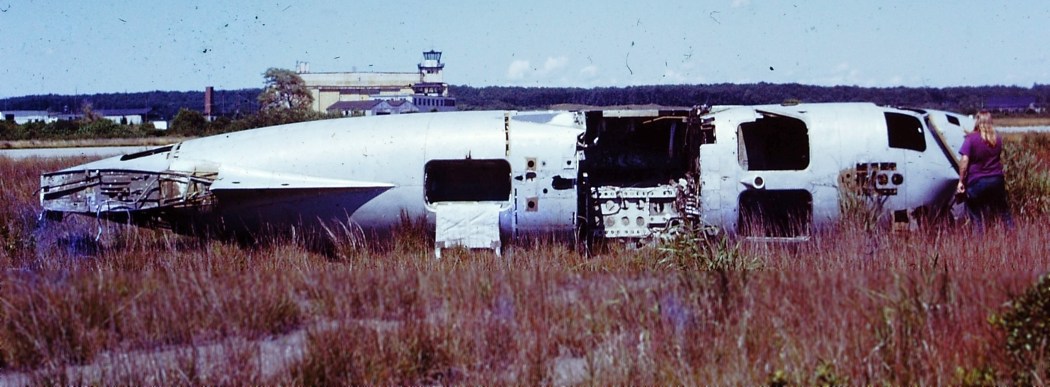

there used to be a couple of wrecked planes on a runway.

Maybe the last time we visited 'illicitly', we were greeted (not quite)

by some enforcement type who was not pleased with our visit.”

In 1976 the property was considered as the site for Rhode Island's first nuclear power plant,

but this was not carried out, due to protests from residents of the surrounding area.

The property is currently the Ninigret Park & Wildlife Refuge.

Bob Jeska reports from a visit to the site in 1980,

"The hulks of 2 large hangars was all that remained at that time,

but the gate was chained so that we couldn't get close."

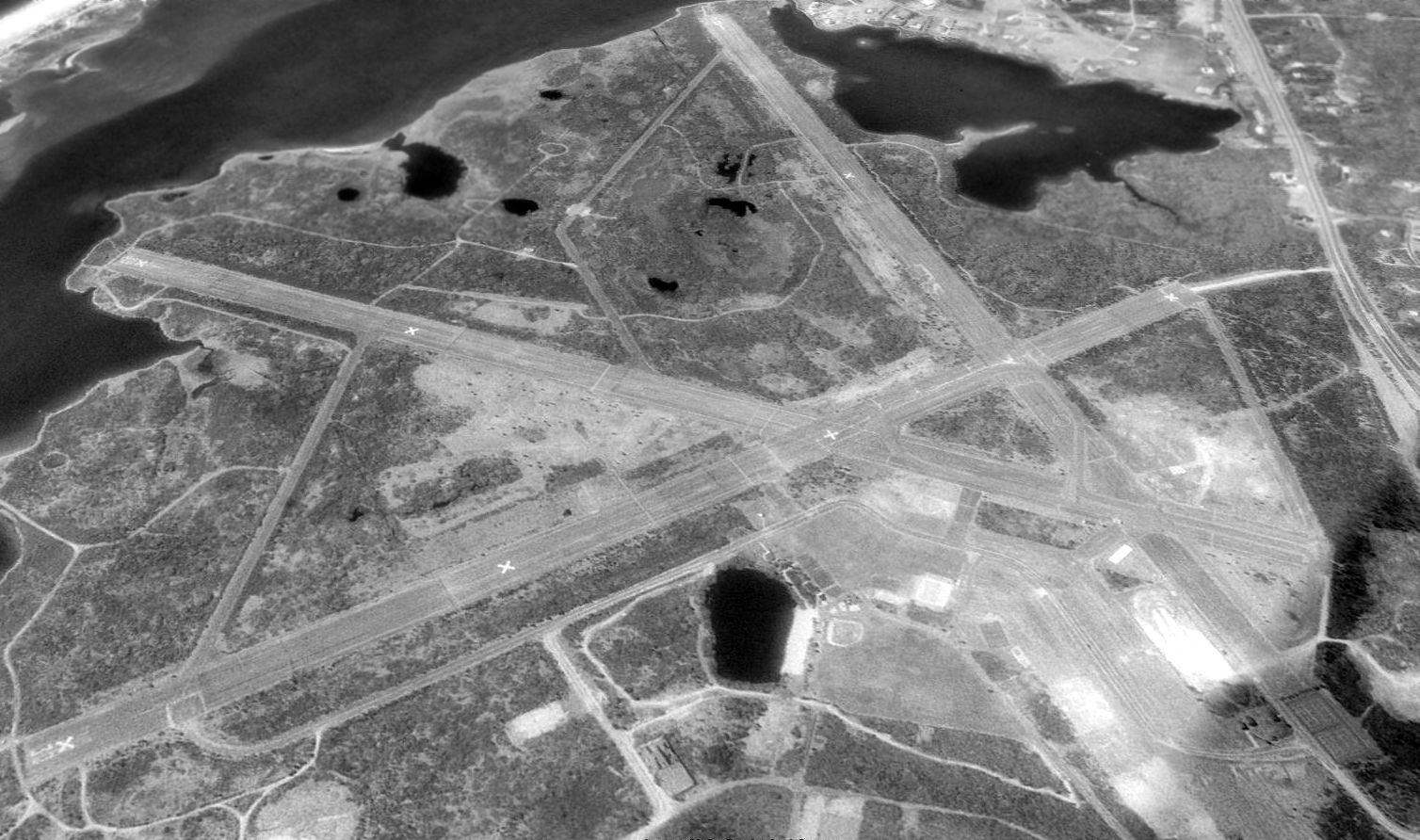

A 1981 aerial view of Charlestown (from the RIGIS at the University of Rhode Island)

showed that the last hangar still remained standing at that point.

However, this hangar was subsequently removed at some point between 1981-88,

as a 1988 aerial view of Charlestown (from the RIGIS at the University of Rhode Island)

showed that all of the hangars had been demolished by that point.

The 1989 USGS topo map depicted the “U.S. Naval Reservation Auxiliary Landing Field”

as having 3 paved runways, numerous taxiways, ramps, and 2 large hangars.

Charlestown still had some significant aviation usage as late as 1999:

on November 18, 1999 the Comet Chaser aeronomy mission was launched on a Viper-Dart rocket from Charlestown,

reaching an apogee of 55 miles.

According to James Brennan, “A friend in my flying club got to land there with several warbirds (excuse was 'press plane')

before the runways were spoiled -

it was part of a Memorial Day deal relating to the stone monument.”

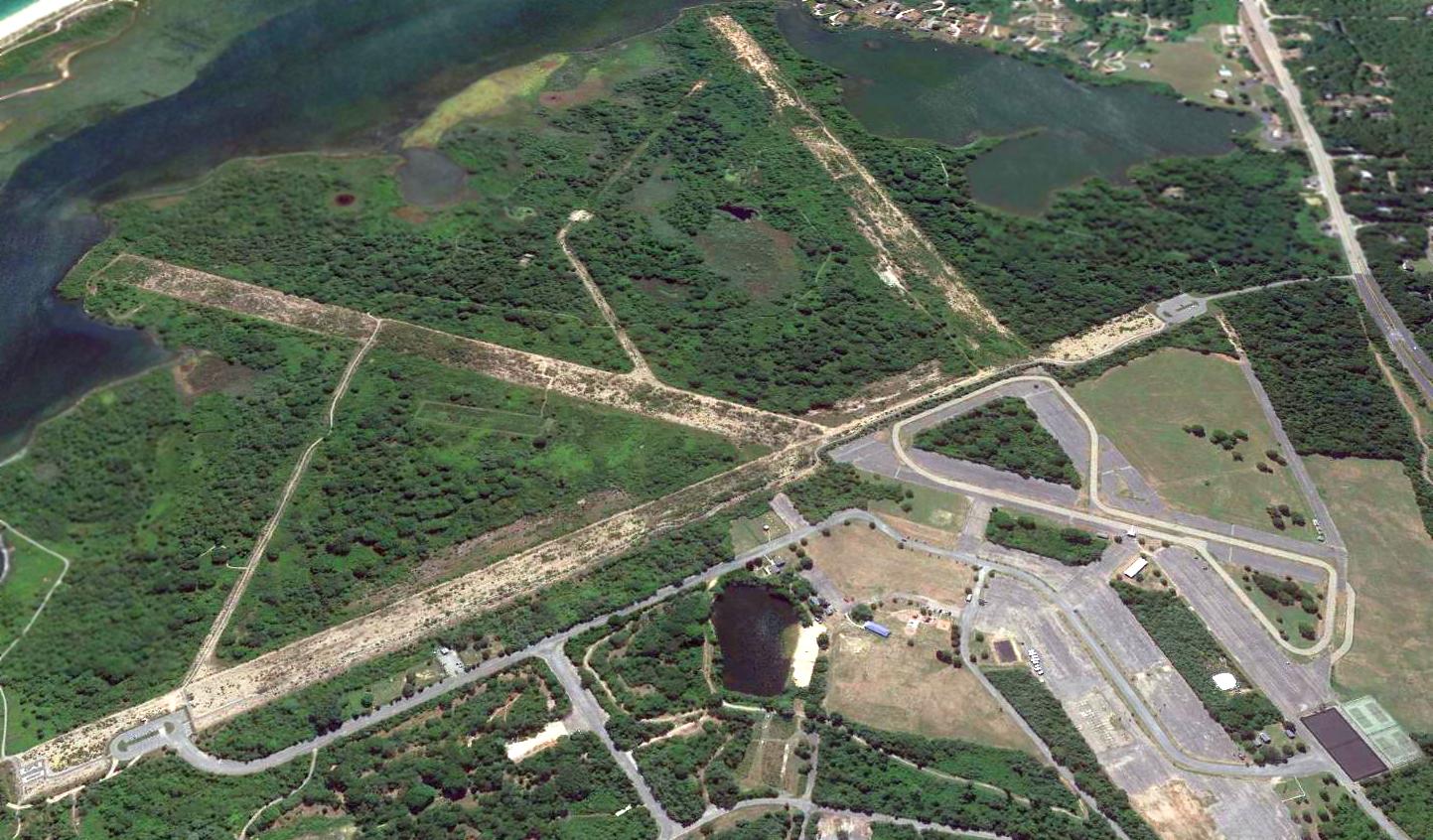

As of the circa 2000 aerial photo,

the airfield consists of 3 paved runways (the longest is approximately 5,000' long), taxiways & ramp areas.

An automobile test track is visible on the northern portion of the runways.

The original runway pavement has been progressively removed by the state government -

In the above 2000 aerial photo,

the asphalt has already been removed from all but the northern portions of the runways.

None of the original military buildings or hangars remained standing at the site.

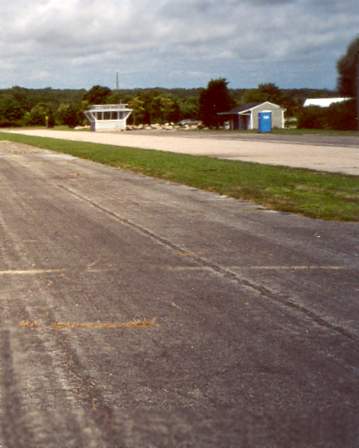

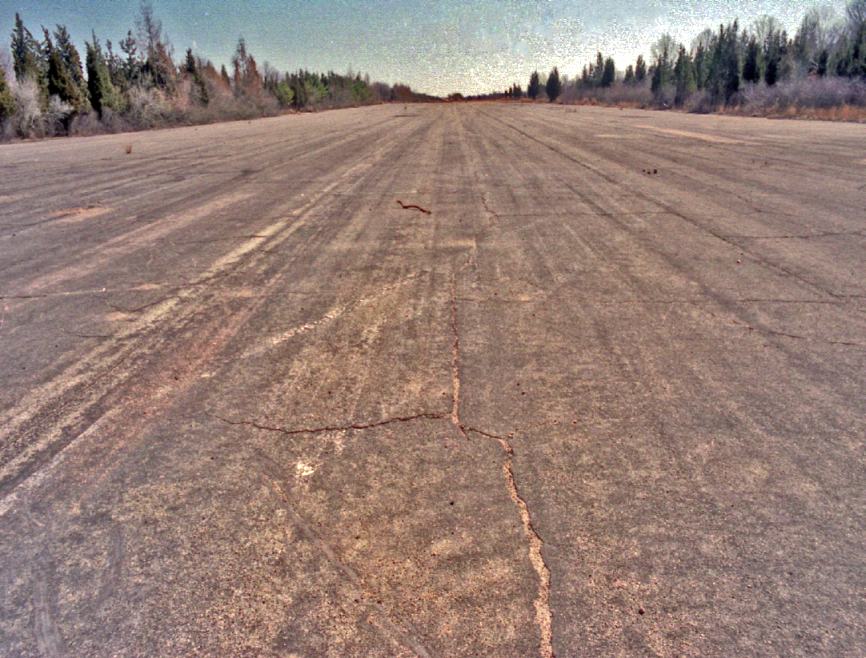

A 2002 photo by John Eckberg of a remaining portion of the runway & taxiway at the north end of Charlestown.

The tower cab (previously mounted on top of one of the hangars) is now used for events.

A 2002 photo by John Eckberg of a recently-erected memorial at Charlestown.

James Brennan reported in 2005, “Charlestown is now a town park

and the big cheese behind it caused most of the fine runways to be chewed up.”

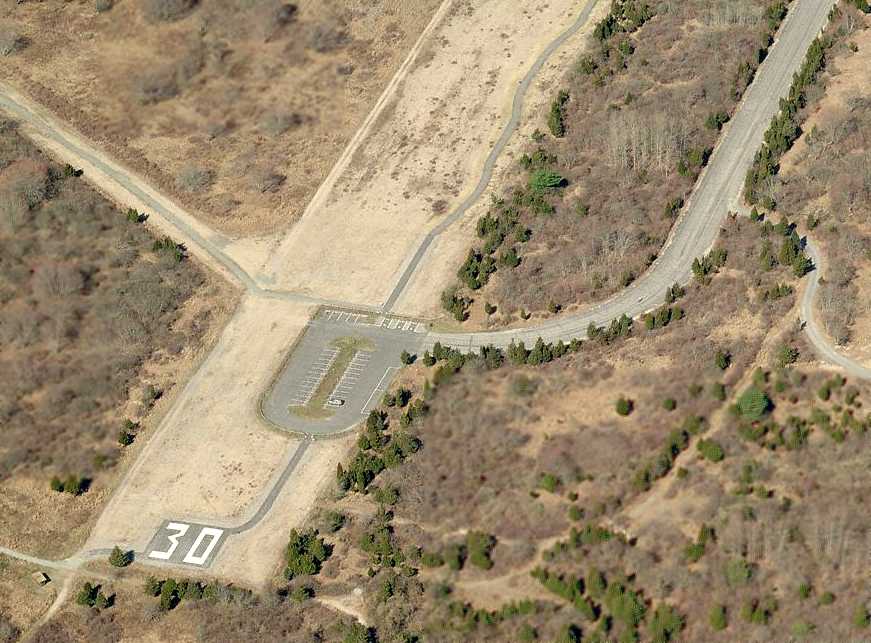

A circa 2006 aerial view looking west at the remains of Charlestown's Runway 30,

showing the parking lot which was built over the runway end,

but the inexplicable sight of what appears to be relatively recently-painted runway numbers – why?

The site of Charlestown NAAS is located south of the intersection of Post Road & RI Route 1A South.
