President Lincoln CB-Radio


PRESIDENT LINCOLN



CHIPSWITCH

Enhanced Microcomputer for the:
President Lincoln
President HR 2600
Uniden HR 2510
Uniden HR 2600


MODIFICATION

PRESIDENT LINCOLN FREQUENCY CHANGE


ALINGNMENT

Block Diagaram - CPU and PLL Board

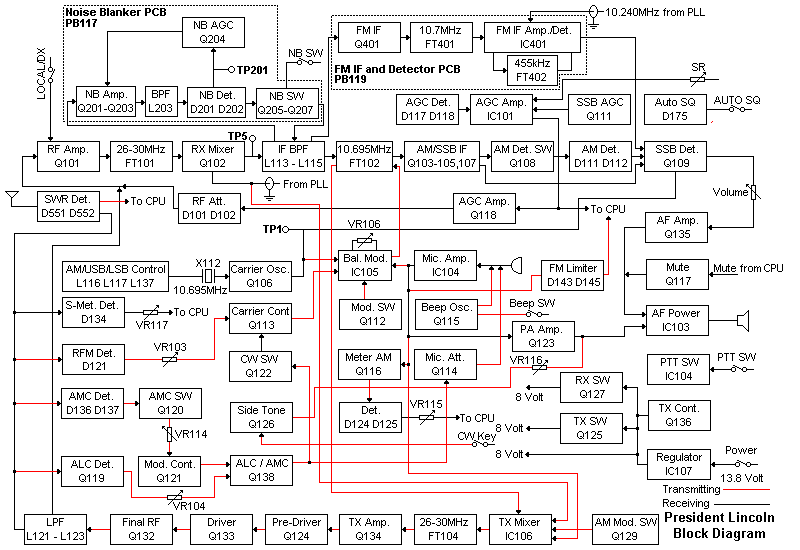

Block Diagaram - Analog Board

Transmitter Alignment

Receiver Alignment

Oscillator Alignment


User Manual CB-Radio (Norwegian)

User Manual HAM-Radio (Norwegian)


COMPONENTS

Schematic diagram CPU-board E12-2758

Schematic diagram analog board E12-2757

PLL0305 PLL Frequency Synteheseizer

SM5152A PLL Frequency Synteheseizer

M54460L Hig Speed Frequency Divider

SO42P / TDA6130-5

IR3N06 Narrowband FM IF

AN612 Balanced Modulator

TA7320P Balanced Mixer

TDA1905 Power Amplifier

NJM2902N Quad Operational Amplifire

NJM4558S Dual Operational Amplifire

MRF477 Finale Transistor

2SC2166 Driver Transistor

FT101 Receiver Band Pass Filter

FT104 Transmitter Band Pass Filter


Microphone Connection

Pin Description
1 Microphone
2 Ground
3 TX Key (Connect to Ground)
4 Program Up (Connect to Ground)
5 Program Down (Connect to Ground)


Accessory Connector


Link`s

PRESIDENT LINCOLN MODIFICATIONS
