LM2111M ULN2111N
SN76643N MC1357P
FM IF-Amplifier and Discriminator

Features:
Greatly Simplified FM Demodulator Alignment
Excellent Performance at V+ = 8V

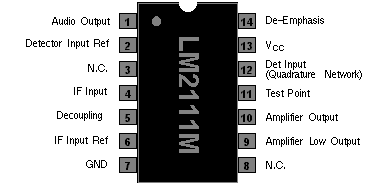

PinNameDescription
1Audio Output
2Detector Input Ref.
3No Connection
4IF Input
5Decoupling
6IF Input Ref.
7Ground
8No Connection
9Amplifier Low Output
10Amplifier Output
11Test
12Detector Input
13Positive Supply Voltage
14De-Emphasis
