MB1504 PLL Frequency Synthesizer

PIN-description
SERIAL INPUT PLL FREQUENCY SYNTHESIZER WITH 520MHz PRESCALER
The Fujitsu MB1504/MB1504H/MB1504L, utilizing BI-CMOS technology, is a single chip serial input PLL frequency synthesizer with pulse-swallow function.
The MB1504 series contains a 520MHz two modulus prescaler that can select either 32/33 or 64/65 divide ratio; control signal generator; 16-bit shift register; 15-bit latch; programmable reference divider (binary 14-bit programmable reference counter); 1-bit switch counter; phase comparator with phase inverse function; charge pump; crystal oscillator; 19-bit shift register; 18-bit latch; and a programmable divider (binary 7-bit swallow counter and binary 11-bit programmable counter).
The MB1504 operates from a low supply voltage (3V typ) and consumes low power (30mW at 520MHz).

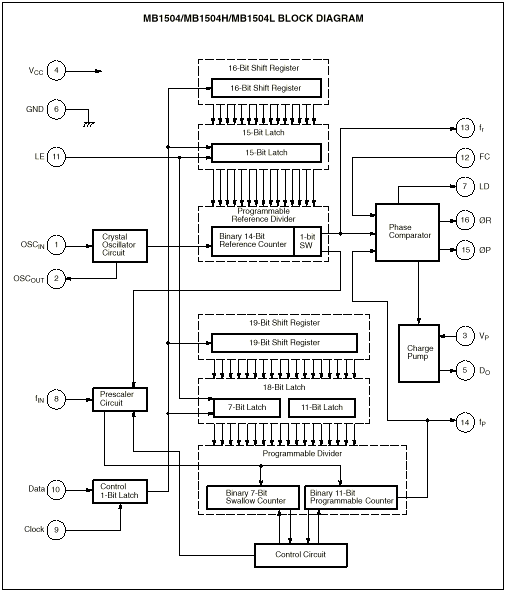

Block Diagram
FEATURES
&127; High operating frequency: fIN MAX =520MHz (VIN MIN =0.20VP-P)
&127; On-chip prescaler
&127; Low power supply voltage: 2.7V to 5.5V (3.0V typ)
&127; Low power supply consumption: 30mW (3.0V, 520MHz operation)
&127; Serial input 18-bit programmable divider consisting of:
–Binary 7-bit swallow counter (Divide ratio: 0 to 127)
–Binary 11-bit programmable counter (Divide ratio: 16 to 2047)
&127; Serial input 15-bit programmable reference divider consisting of:
–Binary 14-bit programmable reference counter (Divide ratio: 8 to 16383)
–1-bit switch counter (SW) Sets divide ratio of prescaler
&127; 2 types of phase detector output
–On-chip charge pump (Bipolar type)
–Output for external charge pump

PinNameDescription
1OSCINCrystal oscillator connection pin serving as a reference divider input pin (Oscillator circuit input pin)
2OSCOUTCrystal oscillator connection pin (Oscillator circuit output pin)
3VPPower supply pin for charge pump output. Connect this pin to VCC when the internal charge pump is not used.
4VCCPower supply pin
5DOInternal charge pump output pin
6GNDGND pin
7LDLock detector output pin. When locked: LD = “H”, When unlocked: LD = “L”
8fINPrescaler input pin. The pin must be AC-coupled for input.
9ClockClock input pin for 19-bit and 16-bit shift registers. The shift resistors reads data at the rise of the clock pulse.
10DataBinary-coded serial data input pin. The last bit in the data is a control bit.
Control bit = “H”: Sends data to the 15-bit latch.
Control bit = “L”: Sends data to the 18-bit latch.
11LELoad enable signal input pin (with pull-up resistor). When LE = “H”, the pin sends the contents of the shift register to the latch according to the control bit.
12FCPhase comparator phase switching pin (with pull-up resistor). When FC = “L”, the pin inverts characteristics of the phase comparator. It also switches the fout pin (test pin) output between fr and fp.
13frMonitor pin of phase comparator input. It is the same as the programmable reference divider output.
14fpMonitor pin of phase comparator input. It is the same as the programmable divider output.
15øPPhase comparator output pin for external charge pump. This pin is an N channel open-drain output.
16øRPhase comparator output pin for external charge pump. This pin is a CMOS output.
