MB8738 PLL Synthesizer

Overview

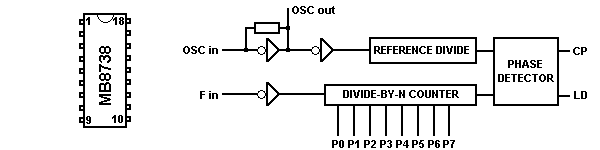

This PLL-circuit use a 7 bit BCD binary programmable divide-by-N counter.


PinNameDescription
1VccPositive Supply Voltage
2R OutReference Frequency In
3R OutReference Frequency Out
4
5
6
7
8
9F InOscillator Frequency Input
10PProgrammable inputs (Binary)
11PProgrammable inputs (Binary)
12PProgrammable inputs (Binary)
13PProgrammable inputs (Binary)
14PProgrammable inputs (Binary)
15PProgrammable inputs (Binary)
16PProgrammable inputs (Binary)
17PProgrammable inputs (Binary)
18VSSGND Ground
