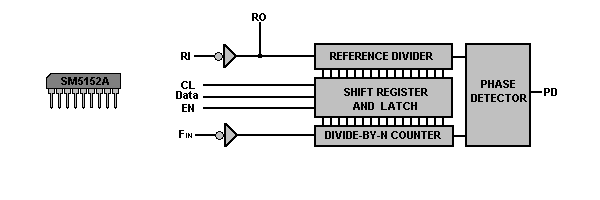

SM5152A Serial Programmable PLL Frequency Synthesizer


PinNameDescription
1RINReferency Frequency Input
2ROReferency Frequency Output (Buffered)
3VCCPositive Supply Voltage
4PDOPhase Detector Output
5GNDGround
6fINFrequency Input
7EEnable
8DData
9CLClock
