    Minolta Dynax 800si 是 現 時 si 系 列 中 最 Top 的 型 號 , 大 家 不 妨 看 看 它 的 功 能 是 否 足 稱 旗 艦 級 相 機 吧 ! ( 當 然 仍 未 算 是 專 業 級 相 機 啦 ﹗ ) 由 於 小 弟 習 慣 看 英 文 的 Technical Terms , 所 以 下 面 全 以 英 文 列 出 , 有 不 便 之 處 , 請 多 多 包 涵 !

Technical Details

DYNAX/MAXXUM 800si

Camera Type: 35mm single lens reflex (SLR) with built-in flash, autoexposure (AE), and action-predictive autofocus (AF) Minolta Dynax 800si
Lens Mount: Minolta A-type bayonet mount
Focus: Type: Through-the-lens (TTL) phase detection, multi metering with CCD line sensor metering cell.   Autofocus and manual focus modes.
AF Sensitivity Range: EV -1 to 19 (ISO 100)
AF Illuminator: Built-in LED with range of 0.7 - 7m.  Automatically activated in low-light, low-contrast situations.
AF Control: Single-shot, continuous, automatic AF-mode selection.
Names of parts: Name of Parts
Name of Parts
Name of Parts
Exposure: Modes: P, PA, PS, A, S, M, and 5 Subject Program modes (Portrait, Landscape, Close-up, Spots, Night portrait/scene)
Type: TTL metering; direct TTL metering for flash.
Metering Cell: 14-segment honeycomb pattern SPC for ambient light and flash-metering SPC for flash.
Metering Range (f/1.4 lens): Multi-segment metering: EV 0 - 20
Spot metering: EV 3 - 20
Film-speed Setting: Automatic setting for DX-coded film from ISO 25 to 6400.  Manual setting from ISO 6 to 6400.  1/3 EV increments.  With flash, ISO 25 - 1000.
Compensation: +/- 3 EVs in 0.5 EV increments.
Bracketing: 3, 5 or 7 frames in 0.3, 0.5 or 1.0 EV increments.
Shutter: Type: Electronically-controlled, vertical-traverse, focal-plane shutter.
Speeds: Bulb, 30 sec. - 1/8000 sec.  Maximum flash sync speed is 1/200 (synchronizes with all speeds in HSS mode).
Build-in Flash:
GN:
14 - 20 (ISO 100 in meters)
Control: Manual up/down
Coverage: 24 - 80mm angle of view
Recycling Time: Approx. 3 sec.
Modes: Fill flash, Fill-flash with red-eye reduction, Wireless flash, Rear-flash sync, (Flash cancel) Rear-flash-sync is compatible with the built-in flash and all usable dedicated flashes.
Flash Compensation: +/- 3 EVs in 0.5 EV increments.
Flash Bracketing: 3, 5 or 7 frames in 0.3, 0.5 or 1.0 EV increments.
Dedicated Flashes: Compatible
Eye-Start: Automatically activates the autofocus and autoexposure as soon as you bring the camera to your eye and touch the grip sensor.
Viewfinder: Type: Eye-level fixed pentaprism with 92 x 94% field of view
Eyerelief: High-eyepoint; approx. 22.9mm from the eyepiece, 18.9mm from the eyepiece frame
Focusing Screen: Acute matte (interchangeable on service basis)
Magnification: 0.75x (with 50mm at infinity)
Diopter: -1
Diopter Adjustment: -2.5 to +0.5 diopter
Viewfinder
Film Transport:
Loading:
Auto loading (automatically advances to the first frame when back cover is closed)
Drive Modes: Single frame, continuous (3 frames/sec.), self-timer, exposure or flash bracketing, multiple exposure (2 - 9 exposures)
Rewind: Auto rewind, manual start (Countdown display)
Rewind Time: Standard (slow/silent) - approx. 23 sec (36 exp. roll), High speed - approx. 12 sec (36 exp. roll)
Frame counter: Forward (shows number of exposures taken)
Memory: Total 3 sets of camera function settings:
FUNCTIONS SETTINGS THAT CAN BE STORED IN MEMORY
Exposure Mode
Subject Program
P/A/S/M, Portrait, Landscape, Sports, Close-up, or Night Portrait
Aperture Setting f/1.0 - f/64 (depends on lens)
Shutter-speed Setting 30 sec. - 1/8000 sec. or BULB
AF Mode Automatic autofocus, Continuous autofocus, or Single-shot autofocus
Film Drive Mode Single-frame advance, Continuous advance, Multiple exposure, exposure-bracketing, or self timer
Flash Mode Flash on, Red-eye reduction, Rear-flash sync, Wireless/Remote flash
Exposure Compensation -3.0 to + 3.0 EV (in 0.5 EV steps)
Flash Compensation -3.0 to + 3.0 EV (in 0.5 EV steps)
Metering Mode 14-segment honeycomb, Center-weighted average, Spot
Focus Frame Wide focus frame, or any one of the local focus areas
AF Priority/Release priority Autofocus priority or Release priority
Customized Settings:
Total 16 functions can be customized:
FUNCTION # CONTROL SETTING ACTION
1 Release Priority 1
2
AF Priority
Release Priority
2 Film Rewind Start 1
2
Auto
Manual
3 Film Tip 1
2
Rewind into cartridge
Out of rewound cartridge
4 DX Memory 1
2
On
Off
5 Flash Control in P-Mode 1
2
Manual switchover
Autoswitchover
6 Lens Focus Hold Button
(if applicable)
1
2
3
Focus hold
Center-area select
Continuous AF
7 Eyepiece Sensor Activation 1
2
Grip switch
Main switch
8 Frame Counter 1
2
Normal
Counts down
9 AF Area Selection 1
2
Wide or Local
Center only while pressing AF button
10 AE Lock Button 1
2
Active while button is pressed
Active or cancel after button is pressed
11 Exposure Bracket Sequence 1
2
Normal, -, +
-, Normal, +
12 Film Rewind Speed 1
2
Silent (slow)
Fast
13 Viewfinder Display Duration 1
2
3
5 sec
10 sec
30 sec
14 Show AF Area 1
2
When AF button is pressed
When focus is locked
15 Eye-start Switch 1
2
3
Turns eye-start on & off
Turns dial-lock on & off, eye-start is always on
Turns dial-lock on & off, eye-start is always off
16 Built-in Flash Zoom 1
2
Linked with focal length
Fixed to wide
Data Memory: Store the following information from 9 rolls of film with up to 40 exposures on each roll:
- Aperture - Lens focal length - Exposure compensation
- Shutter speed - Flash status (on/off) - Flash compensation (if used)
- Bracketing/flash bracketing (on/off)

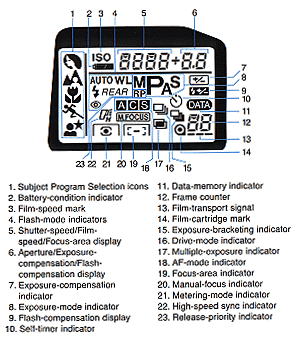

Data Panel: Backlit on-body LCD (automatically illuminated in low-light situations)
Data Panel
PC Terminal: Center-positive
With VC700: both PC terminals can be used (together or separately)
Power: 2CR5 x 1
Battery Performance:
60 rolls with flash 0% (at 20 degree Centigrade)
22 rolls with flash 50% (at 20 degree Centigrade)
13 rolls with flash 100% (at 20 degree Centigrade)
Dimensions: 153.5 x 107 x 71.5mm (W x H x D)
Weight: 628g (without battery)
640g (with Quartz Data Back, without battery)
