Moving the standard Intercooler

All this information and these pictures were given to me by Hirosi - keeping us dudes outside Japan in - tune, thanks alot.

Due to Hirosi understandable lack of English the text has been converted to English using translation software, so it may seem strange!

There was a question about the inter-cooler certain.

And, it is the answer that it faces.

Contents are almost written to the bottom by the original.

Contents were contents, and time was very much needed though it had a letter from y the front z and thought of an answer at once.

It is mailed because a sentence was completed tentatively.

Well, the inter-cooler of the pure plus wasn't necessarily moved when it said strictly in the case of me though it was the matter of the pure plus inter-cooler movement of the question.

Details are thought to be delicately wrong because the type which the pure plus of ARC was exchanged for was made introductory remarks.

But, it is reality to start work with the thought ARC y the spare z y the original idea z because there was a secondhand extension thing halfway when a pure plus is begun with being moved, too.

Therefore, it thinks that even a pure plus is somehow because it doesn't change too much from the viewpoint of dimension because it is the type which a pure plus is exchanged for even if ARC is said after all.

Only, it is unacceptable to make both inter-coolers introductory remarks under the condition as it is, and processing of the inter-cooler's own becomes necessary.

Therefore, have the possibility that it can't be returned any more in the position of the pure plus of the cause when one end is processed, and think about the side fully, and act.

Well, though it thought that details were intended to be written from now, I carried it out in the judgment of the place y most of contents of work z y the place z.

There are not familiar plan document which remains, and a draft in the enforcement time as well because it was (It is remodeled one after another.) y about seven years ago z and it wasn't interested y I-R of the same specification was made besides z.

Trial and error was repeated, and work was carried out.

Therefore, it takes time to remove a composition part because an element is searched for like the installation position of the goods and a dimension to collect it in the sentence.

Furthermore, line favor is done from the thing, and it becomes the contents which one actual book is made in that a working process document is made.

I don't have time to do such a thing with being disappointed.

Approve it because they don't become the contents that all is covered because there are renewal of the homepage which I manage, a repair remodeling of my own car as well besides in such cases as a question from the person and an answer, the communication.

And, if the car of the goods isn't seen, it doesn't think that it can be imaged fully.

Therefore, familiar contents any further aren't explained except that it is devoted directly (It is special in Internet.)

Approve it together.

Some is putting an image (JPG file) in FD again.

See it from the personal computer in that (It is in such cases as the workplace.)

These contents are taken tentatively by the text file, too.

The goal which I attached importance to in the working operation is as mentioned in the following.

1 Money isn't spent.

(Did you finally become the one within?)

2 Maintenance is improved.

(An inter-cooler is the countermeasure which can recover in a short time even if a removal can be done and an inter-cooler is damaged even if a bumper isn't removed.)

3 The extreme power doesn't process a body.

(A circumference part is left as much as possible. Of course there is an air conditioner.)

4 Most of the work is done by itself.

(Cutting, a pattern stock were welded together, and but it asked for only aluminum welding.)

5 Goods on the market are used.

It was finally about three months outside work soil day outdoor (consideration inside) possible at night work daytime of course weather decide, too, condition garage establishment be though it was a (A trust and a marketing part such as HKS are used.) period of effectiveness period of effectiveness.

Only, it thinks that sureness was found, too, to be the cause which turned in a long time more than the time efficiency.

A necessary tool, usually, in the tool and others, welding machine (Though it was a housing development, a switchboard was pulled freely 200V.)

A very special tool used (Various tools are in many tentatively to the me Family.) for a pipe cutter, a grinding machine, the horse, an arm jack, a vice, a drill, and others, too.

There is a place if only the tool can be used for the place, too.

Because it becomes the condition which makes a car stop, the one that work was started from the circumference is wise first as for preparation's processing an inter-cooler suddenly before the working process.

How is it from the viewpoint of budget though the inter-cooler of the cause is left to the end of the extreme power and it is an exchange in the last scene if it has a spare like me?

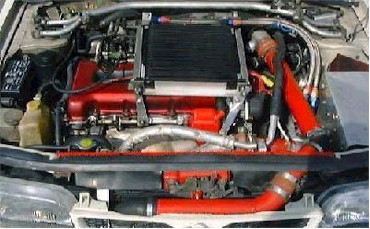

A battery becomes an obstacle though the engine room of I-R is small and a pipe is turned though it is good if it can peep at HP (There are details.) of the battery movement me.

Therefore, a battery is moved to the rear trunk.

The capacity that an engine can be only started is necessary, and a diameter is necessary for the line by about 1cm.

4m is necessary.

Because it is improper if it isn't put in the inside in safety, there is necessity (in the case of me, the back of the left fender inside) to make a hole in the body in wiring.

It is made up for with the putty and so on because waterproofing becomes necessary after a hall cutter became necessary and passed through the line.

A line to quote is only added, and a ground has a minus in the body (A hole is made, and a coating is torn off and stopped with the bolt.) right after the battery.

It is the above method, and it is a possibility fully in the ability-like side because wiring becomes complicated and becomes expensive from the viewpoint of cost as well though both of the plus & minus have only to be pulled fundamentally.

This method is a method to do by rally car and so on.

Moreover, an electric supply box is made in the engine room, and the consideration which a power supply is taken in from there is necessary, too.

A thing which puts it in the box for the prevention (Contain the liquid omission as well.) such as damage and to stop is ideal though it is stopped with the usual metal fittings after the installation of the thing stands installation metal fittings (screw stick) from the body y the battery z.

I am using a trash can.

And, exclusive aluminum case and so on is sold in the rally part.

The battery of the sealing up type of the regular battery is good though it is expensive because gas occurs when it says ideally.

Only, there is no trouble even at present y seven years passed in the case of me after the installation z.

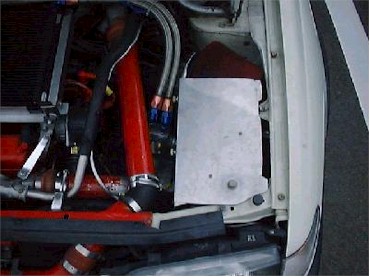

You must vacate a bottom part inside the front of the right fender as a preparation before the power steering oil cooler of the miniaturization following of the window washer tank is moved.

Because there is a window washer tank (about 4L), it is removed, and the window washer tank (about 2L) of the non rear wiper specification of the pulsar3 door HB is appropriated in the position in the case of I-R for the substitute.

It is enough for this miniature window washer tank that a town is usually put by the specification that a tank is put in the engine room in this capacity.

Only, only one pump is stuck to the miniature window washer tank in specification.

Therefore, the work of increasing pump for the rear wiper in the case of I-R becomes necessary.

A hole is made in the suitable position of the tank, and a pump is taken there from the original window washer tank, and inserted, and you have only to wire it.

The power steering oil cooler of the pure plus becomes an obstacle when an inter-cooler is put on the movement of the power steering oil cooler, the preparation front.

Impossibility appeared a little in the case of I-R which the amount of fever was abundant in that, and decided to be moved though there was a hand which was removed simply and which did a bypass, too, because it was a mere pipe even if an oil cooler was said.

Only, the form of the oil cooler was shape, and there was impossibility, and the oil cooler of the pure plus was flatly thrown away, and it took means that a new oil cooler was installed that it was moved to other places.

A used core ordered the oil cooler of the car because the oil cooler of the accident car which saw it by chance was suitable from the viewpoint of size.

After that, in the bottom part inside the front of fender which installation metal fittings were processed into and which was written in the above, installation

The pipe that it laid a pipe there in the oil cooler of the pure plus was extended, and an air cutout was done after the installation, and work was finished.
