Through the efforts of the ATM Forum (jointly founded in 1991 by Cisco Systems, NET/ADAPTIVE, Northern Telecom, and Sprint), ATM is capable of transferring voice, video, and data through private networks and across public networks. ATM continues to evolve today as the various standards groups finalize specifications that allow interoperability among the equipment produced by vendors in the public and private networking industries.
ATM uses very large-scale integration (VLSI) technology to segment data
(for example, frames from the data link layer of the OSI reference model)
at high speeds into units called cells. Each cell consists of 5
octets of header information and 48 octets of payload data, as shown in
Figure 1-1.
Figure 1-1: ATM Cell Format
Cells transit ATM networks by passing through devices known as ATM switches, which analyze information in the header to switch the cell to the output interface that connects the switch to the next appropriate switch as the cell works its way to its destination.
ATM is a cell-switching and multiplexing technology that combines the benefits of circuit switching (constant transmission delay and guaranteed capacity) with those of packet switching (flexibility and efficiency for intermittent traffic). Like X.25 and Frame Relay, ATM defines the interface between the user equipment (such was workstations and routers) and the network (referred to as the User-Network Interface, or UNI). This definition supports the use of ATM switches (and ATM switching techniques) within both public and private networks.
Because it is an asynchronous mechanism, ATM differs from synchronous
transfer mode methods, where time-division multiplexing (TDM)
techniques are employed to preassign users to time slots. ATM time slots
are made available on demand, with information identifying the source of
the transmission contained in the header of each ATM cell. TDM is inefficient
relative to ATM because if a station has nothing to transmit when its time
slot comes up, that time slot is wasted. The converse situation, where
one station has lots of information to transmit, is also less efficient.
In this case, that station can only transmit when its turn comes up, even
though all the other time slots are empty. With ATM, a station can send

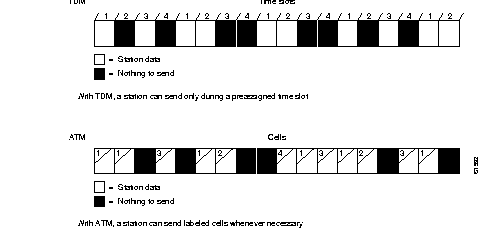

cells whenever necessary. Figure 1-2 contrasts TDM and ATM multiplexing
techniques.
Figure 1-2: TDM and ATM Multiplexing Techniques
Another critical ATM design characteristic is its star topology. The ATM switch acts as a hub in the ATM network, with all devices attached directly. This provides all the traditional benefits of star-topology networks, including easier troubleshooting and support for network configuration changes and additions.
Furthermore, ATM's switching fabric provides additive bandwidth.
As long as the switch can handle the aggregate cell transfer rate, additional
connections to the switch can be made. The total bandwidth of the system
increases accordingly. If a switch can pass cells among all its interfaces
at the full rate of all interfaces, it is described as nonblocking.
For example, an ATM switch with 16 ports each at 155 megabits per second
(Mbps) would require about 2.5 gigabits per second (Gbps) aggregate throughput
to be nonblocking.
The UNI specification defines communications between ATM endstations
(such as workstations and routers) and ATM switches in private ATM networks.
The format of the UNI cell header is shown in Figure 1-3.
Figure 1-3: UNI Header Format
The UNI header consists of the following fields:
The GFC field is not present in the format of the NNI header. Instead,
the VPI field occupies the first 12 bits, which allows ATM switches to
assign larger VPI values. With that exception, the format of the NNI header
is identical to the format of the UNI header.
In the ATM reference model, the ATM layer and the ATM adaptation
layers are roughly analogous parts of the data link layer of the Open System
Interconnection (OSI) reference model, and the ATM physical layer is analogous
to the physical layer of the OSI reference model. The control plane is
responsible for generating and managing signaling requests. The user plane
is responsible for managing the transfer of data. Above the ATM adaptation
layer are higher-layer protocols representing traditional transports and
applications.
The ATM physical layer is divided into two parts: the physical medium sublayer and the transmission convergence sublayer. The physical medium sublayer is responsible for sending and receiving a continuous flow of bits with associated timing information to synchronize transmission and reception. Because it includes only physical-medium-dependent functions, its specification depends on the physical medium used.
ATM can use any physical medium capable of carrying ATM cells. Some existing standards that can carry ATM cells are SONET (Synchronous Optical Network)/SDH, DS-3/E3, 100-Mbps local fiber (Fiber Distributed Data Interface [FDDI] physical layer), and 155-Mbps local fiber (Fiber Channel physical layer). Various proposals for use over twisted-pair wire are also under consideration.
The transmission convergence sublayer is responsible for the following:
| Characteristics | AAL1 | AAL3/4 | AAL4 | AAL5 |
|---|---|---|---|---|
| Requires timing between source and destination | Yes | No | No | No |
| Data rate | Constant | Variable | Variable | Variable |
| Connection mode | Connection-oriented | Connection-oriented | Connectionless | Connection-oriented |
| Traffic types | Voice and circuit emulation | Data | Data | Data |
The sequence number field (SN) and sequence number protection (SNP) fields provide the information that the receiving AAL1 needs to verify that it has received the cells in the correct order. The remainder of the payload field is filled with enough single bytes to equal 48 bytes.
AAL1 is appropriate for transporting telephone traffic and uncompressed
video traffic. It requires timing synchronization between the source and
destination and, for that reason, depends on a media that supports clocking,
such as SONET. The standards for supporting clock recovery are currently
being defined.
As shown in Figure 1-7, the convergence sublayer (CS) creates a protocol
data unit (PDU) by prepending a Beginning/End Tag header to the frame and
appending a length field as a trailer.
Figure 1-7: AAL3/4 Cell Preparation
The segmentation and reassembly (SAR) sublayer fragments the PDU and prepends to each PDU fragment a header consisting of the following fields:
Next, the segmentation and reassembly segments the CS PDU into 48-byte
blocks. Then the ATM layer places each block into the payload field of
an ATM cell. For all cells except the last cell, a bit in the PT field
is set to zero to indicate that the cell is not the last cell in a series
that represent a single frame. For the last cell, the bit in the PT field
is set to one.

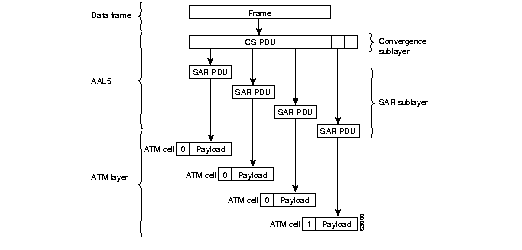

Figure 1-8: AAL5 Cell Preparation
When the cell arrives at its destination, the ATM layer extracts the payload field from the cell; the SAR sublayer reassembles the CS PDU; and the CS uses the CRC and the length field to verify that the frame has been transmitted and reassembled correctly.
AAL5 is the adaptation layer used to transfer most non-SMDS data,
such as classical IP over ATM and local-area network (LAN) emulation.

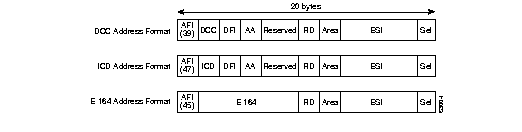

Figure 1-9 shows the format of private network ATM addresses. The
three formats are Data Country Code (DCC), International Code Designator
(ICD), and Network Service Access Point (NSAP) encapsulated E.164 addresses.
Figure 1-9: ATM Address Formats
The fields of an ATM address are as follows:
AFI--1 byte of authority and format identifier. The AFI field identifies the type of address. The defined values are 45, 47, and 39 for E.164, ICD, and DCC addresses, respectively.
DCC--2 bytes of data country code.
DFI--1 byte of domain specific part (DSP) format identifier.
AA--3 bytes of administrative authority.
RD--2 bytes of routing domain.
Area--2 bytes of area identifier.
ESI--6 bytes of end system identifier, which is an IEEE 802 Media Access Control (MAC) address.
Sel--1 byte of NSAP selector.
ICD--2 bytes of international code designator.
E.164--8 bytes of Integrated Services Digital Network (ISDN) telephone number.
The ATM address formats are modeled on ISO NSAP addresses, but they
identify SubNetwork Point of Attachment (SNPA) addresses. Incorporating
the MAC address into the ATM address makes it easy to map ATM addresses
into existing LANs.

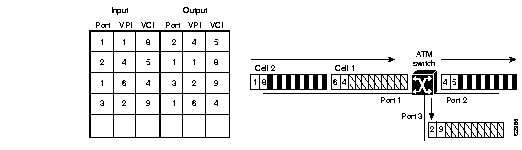

The main function of an ATM switch is to receive cells on a port
and switch those cells to the proper output port based on the VPI and VCI
values of the cell. This switching is dictated by a switching table that
maps input ports to output ports based on the values of the VPI and VCI
fields, as shown in Figure 1-10.
Figure 1-10: Maintenance of Virtual Connections through an ATM Switch
Say, for example, that two cells arrive on port 1 of the ATM switch in Figure 1-10. First, the switch examines the VPI and VCI fields of cell 1 and finds that the fields have a value of 6 and 4, respectively. The switch examines the switch table to determine on which port it should send the cell. It finds that when it receives a VPI of 6 and a VCI of 4 on port 1, it should send the cell on port 3 with a VPI of 2 and a VCI of 9. So, for cell 1, the switch changes the VPI to 2 and the VCI to 9 and sends the cell out on port 3.
Next, the switch examines cell 2, which has a VPI of 1 and a VCI of 8. The table directs the switch to send out on port 2 cells received on port 1 that have a VPI of 1 and a VCI of 8, respectively, and to change the VPI and VCI to 4 and 5, respectively.
Conversely, when a cell with a VPI and VCI of 2 and 9, respectively, comes in on port 3, the table directs the switch to send the cell out on port 1 with a VPI and VCI of 6 and 4, respectively. When a cell with a VPI and VCI of 4 and 5, respectively, comes in on port 2, the table directs the switch to send the cell out on port 1 with a VPI and VCI of 1 and 8, respectively. Note that VPI and VCI values are significant only to the local interface.

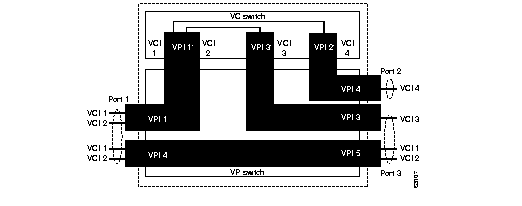

Figure 1-11 shows how the VPI field is used to group virtual channels
(identified by their VCI values) into logical groups. By reducing the number
of fields that have to be changed as each cell passes through the switch,
the performance of the switch increases.
Figure 1-11: Virtual Paths Form Logical Groups of Virtual Channels
In Figure 1-11, cells that enter the ATM switch on port 1 and have
a VPI value of 4 are processed through the "VP switch," which changes the
VPI value of each cell to 5, but leaves the VCI value intact, and sends
the cell out on port 3. Cells that have a VPI value of 1 are processed
through the "VC switch." For cells that have a VCI value of 1, the VC switch
changes the VPI to 4 and the VCI to 4 and sends the cell out on port 2.
For cells that have a VCI value of 2, the VC switch changes the VPI to
3 and the VCI to 3 and sends the cell out on port 3.

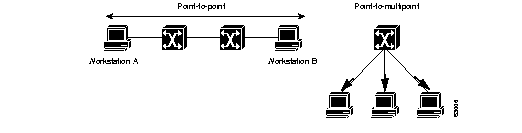

It would be desirable for ATM to support mulipoint-to-multipoint links, which would be equivalent to a broadcast VCC. Unfortunately, the AAL5 standard does not provide a way for the receiver to identify individual cells from specific sources when cells are interleaved from multiple sources. This would not allow proper reassembly of cells into frames, unless all of the cells of a specific frame are sent in proper order, without any interleaving.

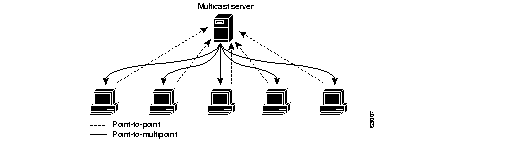

A multicast server is one solution to this problem. A multicast server
can exist in an ATM network, and all members of a multicast group can establish
point-to-point VCCs to it. The multicast server would then create a point-to-multipoint
VCC to all members on the group, with itself at the root, as shown in Figure
1-13.
Figure 1-13: ATM Multicast Server
Any data sent to the multicast server is serialized, sent out the
point-to-multipoint tree, and received by the members of the group. The
value of this approach is that cells from different sources are serialized
and sent in order rather than interleaved. The multicast server can also
support dynamic groups because members can be added and deleted as leaves
on the tree.

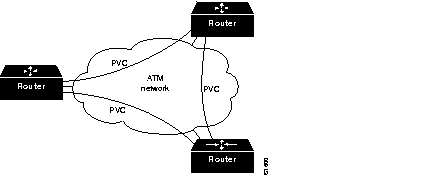

Advantages of ATM PVC service include a direct ATM connection between
routers and the simplicity of the specification and subsequent implementation.
Disadvantages include static connectivity and the administrative overhead
of provisioning virtual connections manually.
It is the responsibility of the ATM device to adhere to the contract by means of traffic shaping. Traffic shaping is the use of queues to constrain data bursts, limit peak data rate, and smooth jitter so that the traffic will fit within the promised envelope.
ATM switches have the option of using traffic policing to
enforce the contract. The switch can measure the actual traffic flow and
compare it against the agreed upon traffic envelope. If it finds that traffic
is outside of the agreed upon parameters, the switch can set the CLP bit
of the offending cells. Setting the CLP bit makes the cell discard eligible,
which means that the switch, or any other switch handling the cell, is
allowed to drop the cell during periods of congestion, as shown in Figure
1-15.

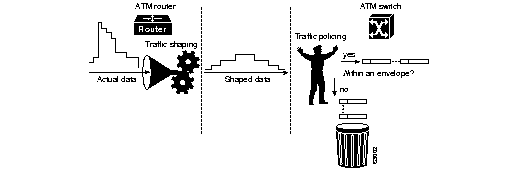

Figure 1-15: Traffic Shaping and Traffic Policing
Congestion control is a primary concern of ATM designers. For example, dropping just one cell that is part of a FDDI frame can result in the retransmission of 93 cells. Retransmission can lead to an exponential increase in congestion as ATM switches drop individual cells from different packets, resulting in retransmission of more packets, which causes even more cells to be dropped.
The ATM Forum is currently working to define a congestion-control
scheme, but that effort is not likely to be completed before mid-1995.

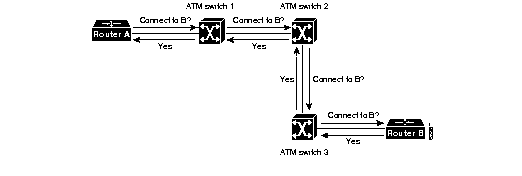

The signaling packet is reassembled by the switch and examined. If the switch has a switch table entry for Router B's ATM address, and it can accommodate the QOS requested for the connection, it sets up the virtual connection on the input link and forwards the request out the interface specified in the switching table for the ATM NSAP of Router B.
Every switch along the path to the endpoint reassembles and examines the signaling packet and forwards it to the next switch if the QOS parameters can be supported while setting up the virtual connection as the signaling packet is forwarded. If any switch along the path cannot accommodate the requested QOS parameters, the request is rejected, and a rejection message is sent back to the originator of the request.
When the signaling packet arrives at the endpoint (Router B), it is reassembled and evaluated. If the endpoint can support the desired QOS, it responds with an accept message. As the accept message propagates back to the originator of the request, the switches set up a virtual circuit. The originator of the request receives the accept message from its directly connected ATM switch, as well as the VPI/VCI value that the originator should use for cells destined for the endpoint.
ATM Forum UNI Specification V3.0 defines the protocols, known as
the NNI protocols, used to route ATM signaling requests between
switches. The ATM Forum is also working on Private NNI (P-NNI) protocols
for use in multiswitch private ATM networks. The ATM Forum has also defined
a P-NNI Phase 0 protocol, based on UNI 3.0 signaling and static routes;
it is continuing work on a P-NNI Phase 1 protocol that supports dynamic
routing.
|
|
